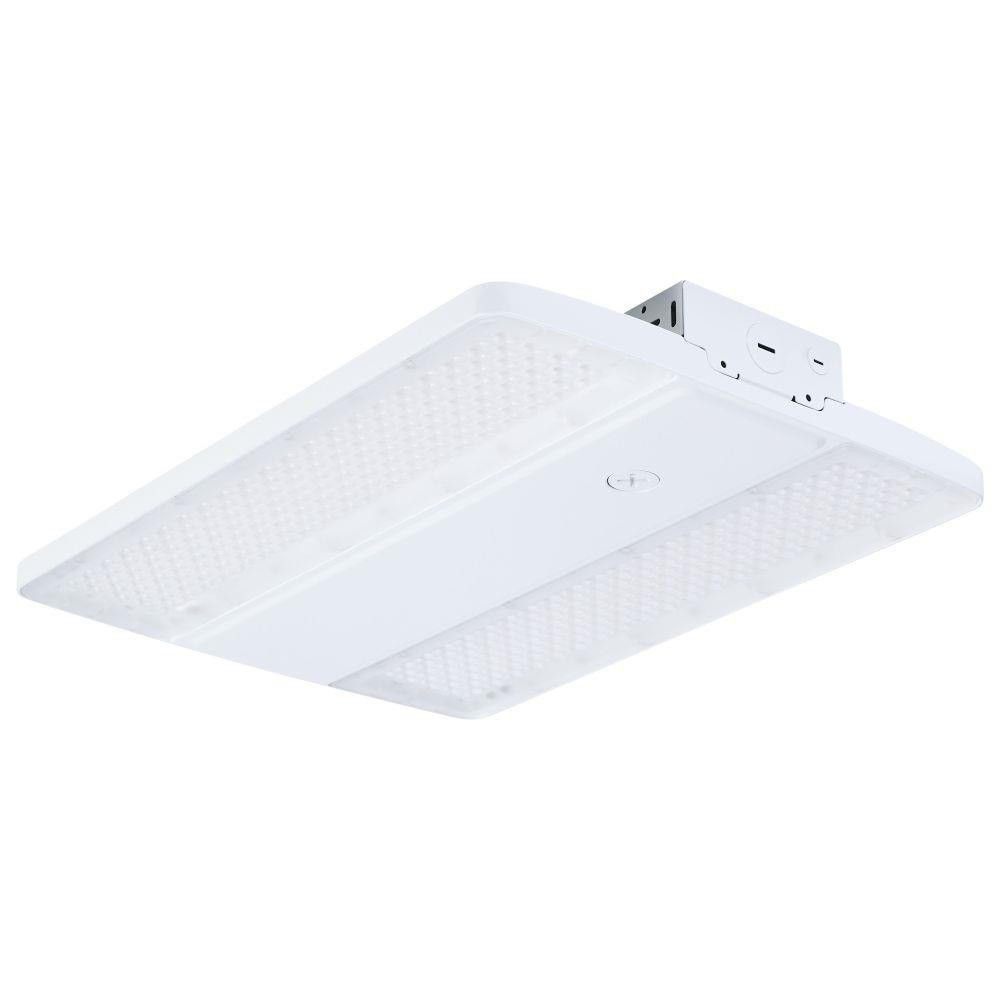

The SATCO NUVO 65-1511 LED Beam Selectable Linear Highbay is designed for higher-output commercial and industrial applications. Selectable beam distributions of 45x100, 65x95, or 90x90 provide precise light control. Field-selectable wattage options of 120W, 135W, or 160W deliver 17,600 to 24,200 lumens with efficacy up to 151 LPW, with selectable CCTs of 3000K, 4000K, and 5000K. Featuring a die-cast aluminum housing and polycarbonate lens, it supports universal 120-347V operation and includes an integrated sensor port and suspension kit. IP20 and IK09 rated, wet-location suitable, DLC 6.0 Listed, rated for 50,000 hours, and backed by a 5-year warranty.
Beam Selectable (45x100/65x95/90x90)
3 CCT Selectable (3000K/4000K/5000K)
3 Wattage Selectable (160W/135W/120W)
6kV Surge Protection
Die-Cast Aluminum Housing with IK09 Rated PC Lens
Integrated Sensor Port
120-347V Range Voltage and 0-10V Dimmable

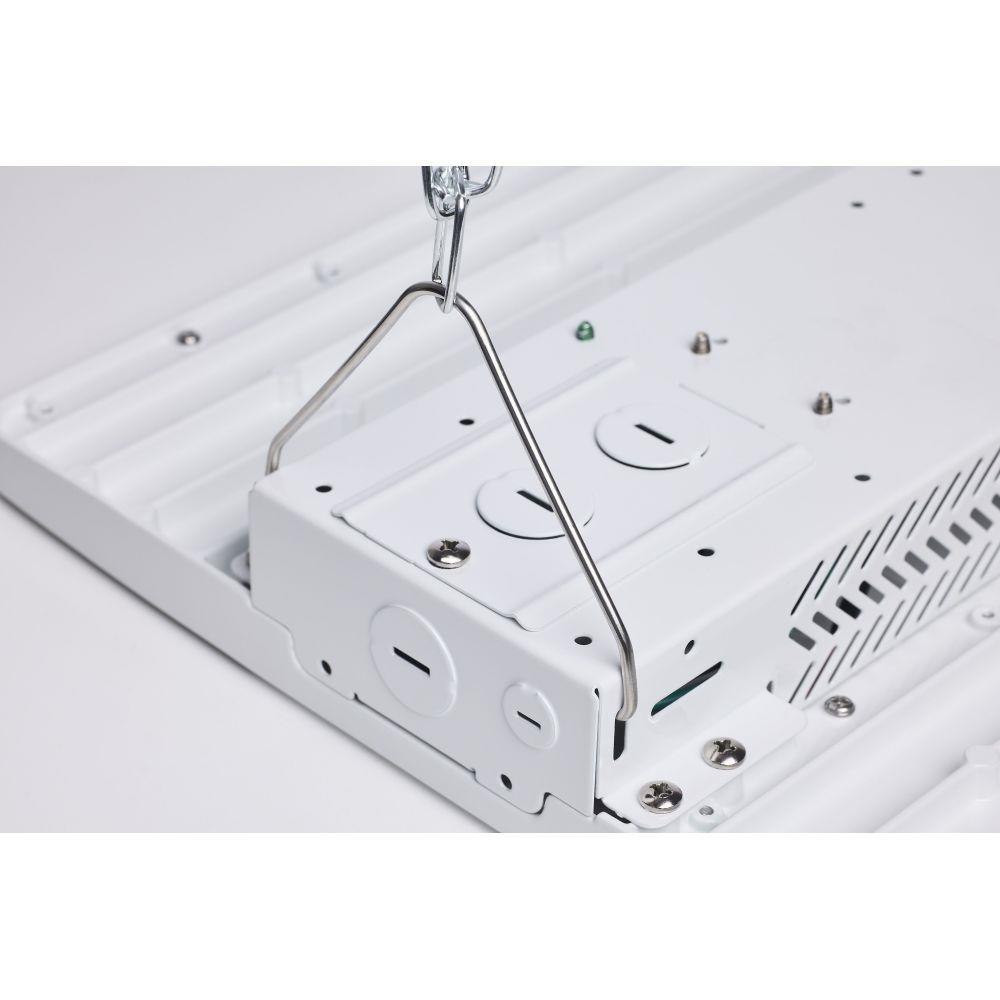

41" Suspension Kit Included
50,000 Life Hours
5 Year Warranty
You May Also Like ...
Loading related products...
SKU: 65/1511
Dimensions
Height
1.89 in
Length
15 in
Width
11.2 in
Lamping Details
Lamp Base Type
Integrated LED
Lamping Type
LED
Lumen Output
24,200 lm
Color Temperature
5000
Color Rendering Index
80
Dimmable
True
Lamp Life
50,000 h
Product Details
Power Source
Hardwire
Material
Aluminum
Finish Color
White
Application
Commercial/Residential
Voltage
347 V
Wattage
160 W
Weight
5.5 lb
Warranty
5 Years
Number of Shades
0
Design Details
Glass Color
Clear
Certifications and Ratings
UL Listed
CUL Listed
Damp Rated
Prop 65
$134.99
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
120/135/160W Selectable LED Linear High Bay 1.89 X 11.2 Inch Wide by Nuvo - 65/1511
The SATCO NUVO 65-1511 LED Beam Selectable Linear Highbay is designed for higher-output commercial and industrial applications. Selectable beam distributions of 45x100, 65x95, or 90x90 provide precise light control. Field-selectable wattage options of 120W, 135W, or 160W deliver 17,600 to 24,200 lumens with efficacy up to 151 LPW, with selectable CCTs of 3000K, 4000K, and 5000K. Featuring a die-cast aluminum housing and polycarbonate lens, it supports universal 120-347V operation and includes an integrated sensor port and suspension kit. IP20 and IK09 rated, wet-location suitable, DLC 6.0 Listed, rated for 50,000 hours, and backed by a 5-year warranty.
