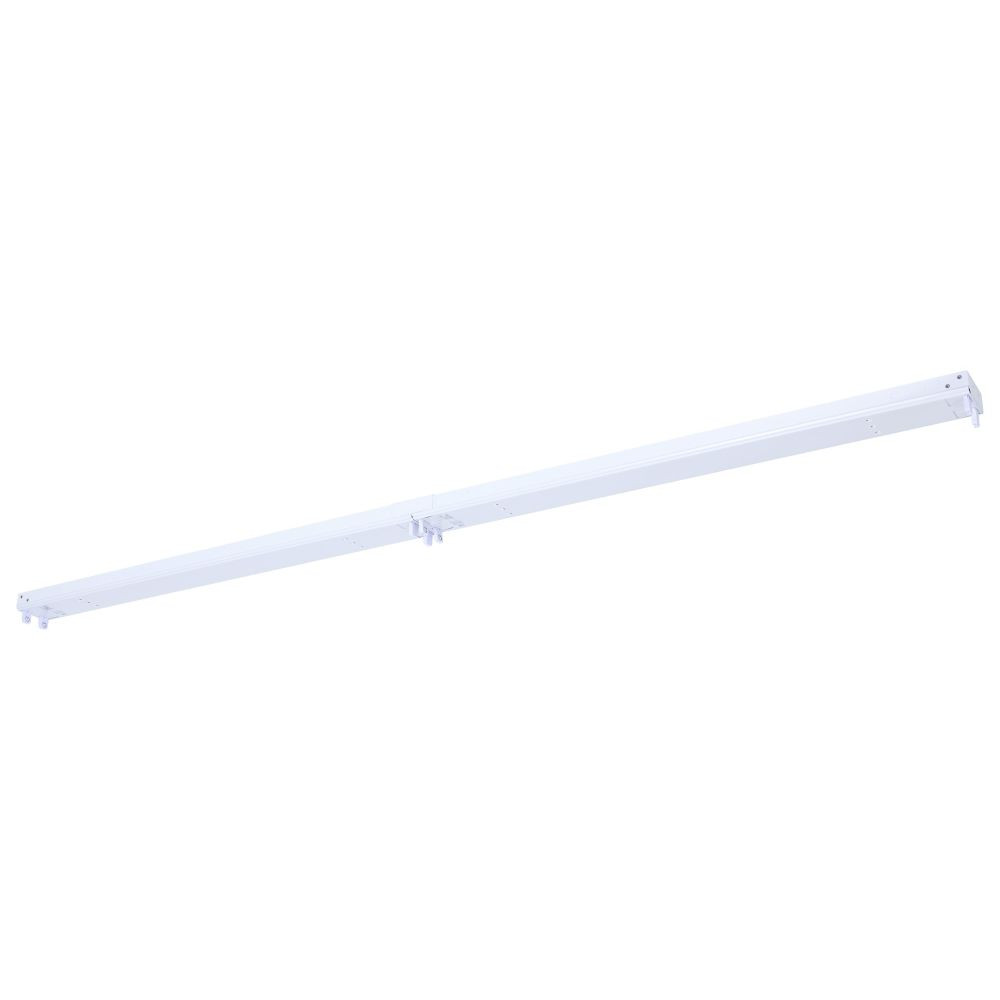

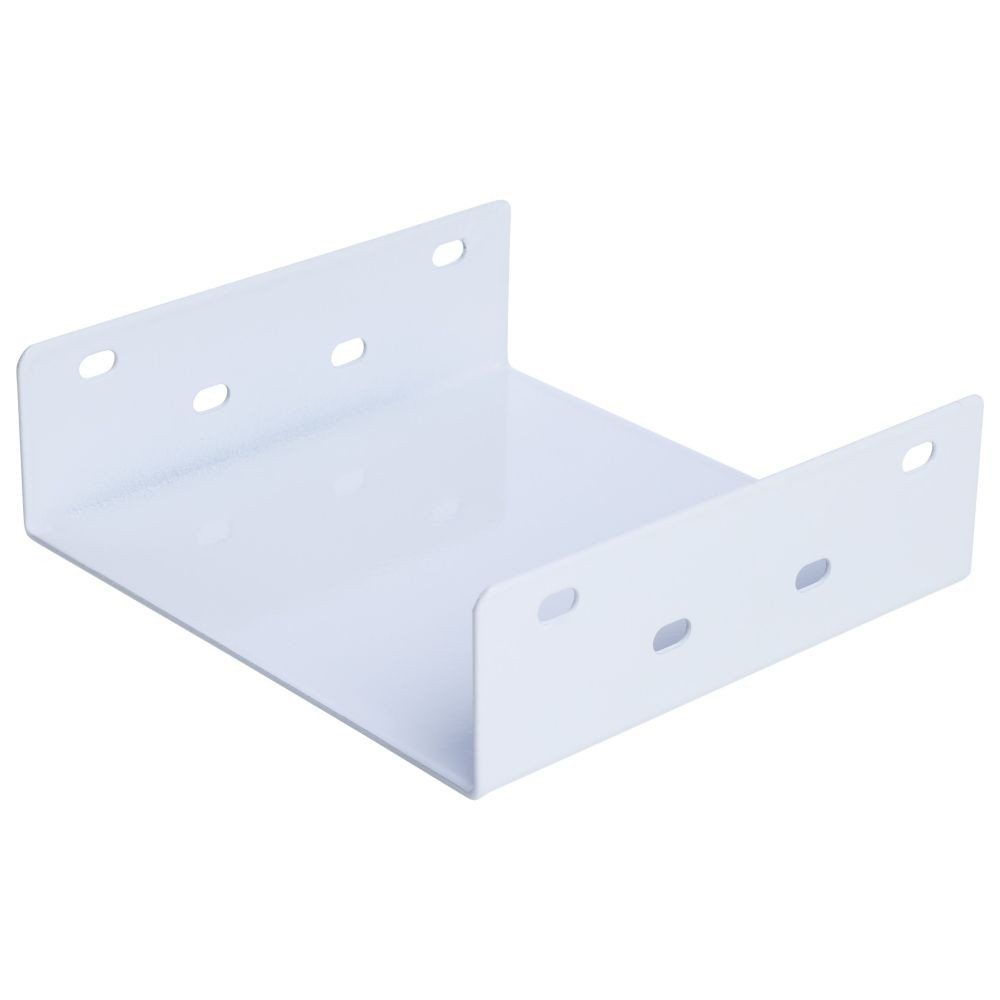

Streamline long-run lighting installations with this versatile 65-905 8' T8 Lamp Ready Fixture, designed for Dual/Quad Fa8 lamps. Ideal for Type B ballast bypass applications, it also offers ample space to accommodate a driver for Type A configurations, providing added flexibility for a range of project needs. The fixture ships in two 4' sections with a convenient connector plate for easier handling, reduced shipping costs, and simplified installation, while integrated knockouts support quick wiring and EM test button access. With interchangeable Fa8/R17d lamp holders and a full range of compatible accessories, this fixture delivers a customizable, efficient solution for demanding commercial and industrial environments. Kit includes 8 x G13 wired holders for the 4 x 4' installation and 4 x FA8 wired holders for 2 x 8' installation.
Dual/Quad Compatible for use with 2 8-foot lamps or 4 4-foot lamps

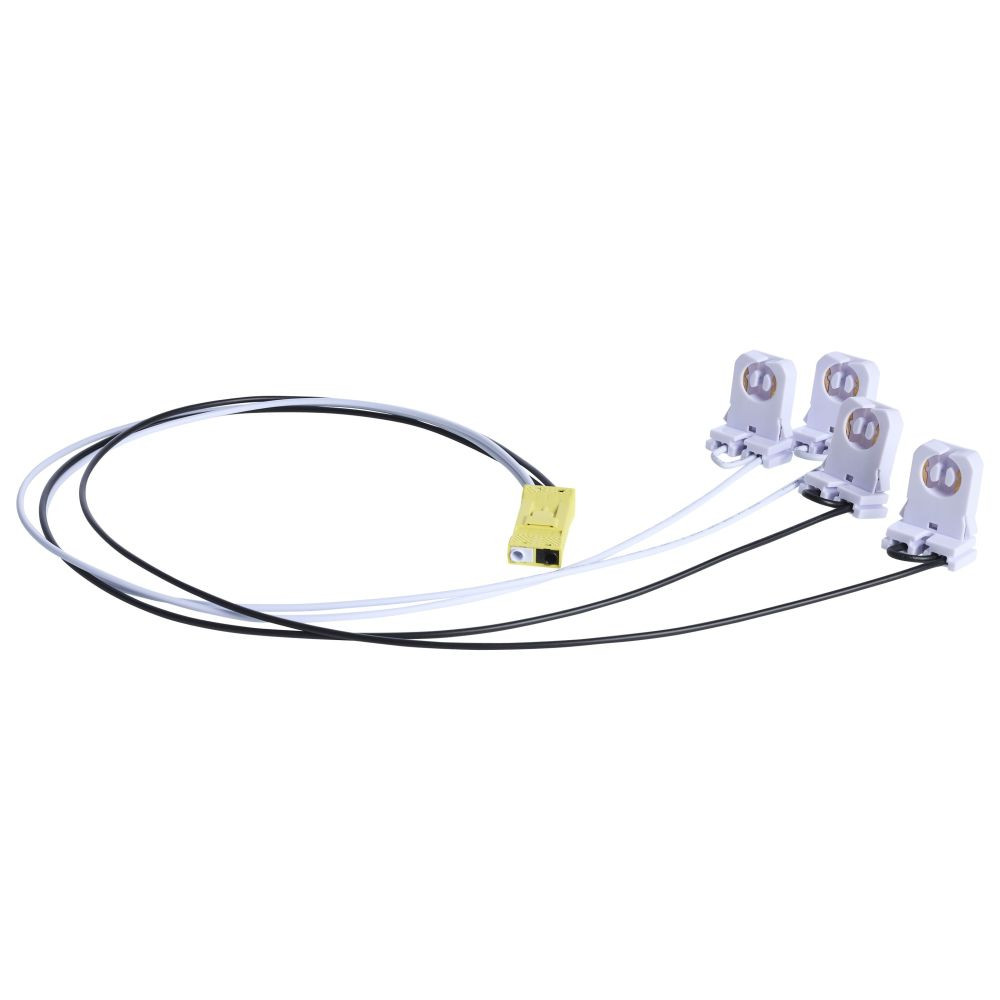

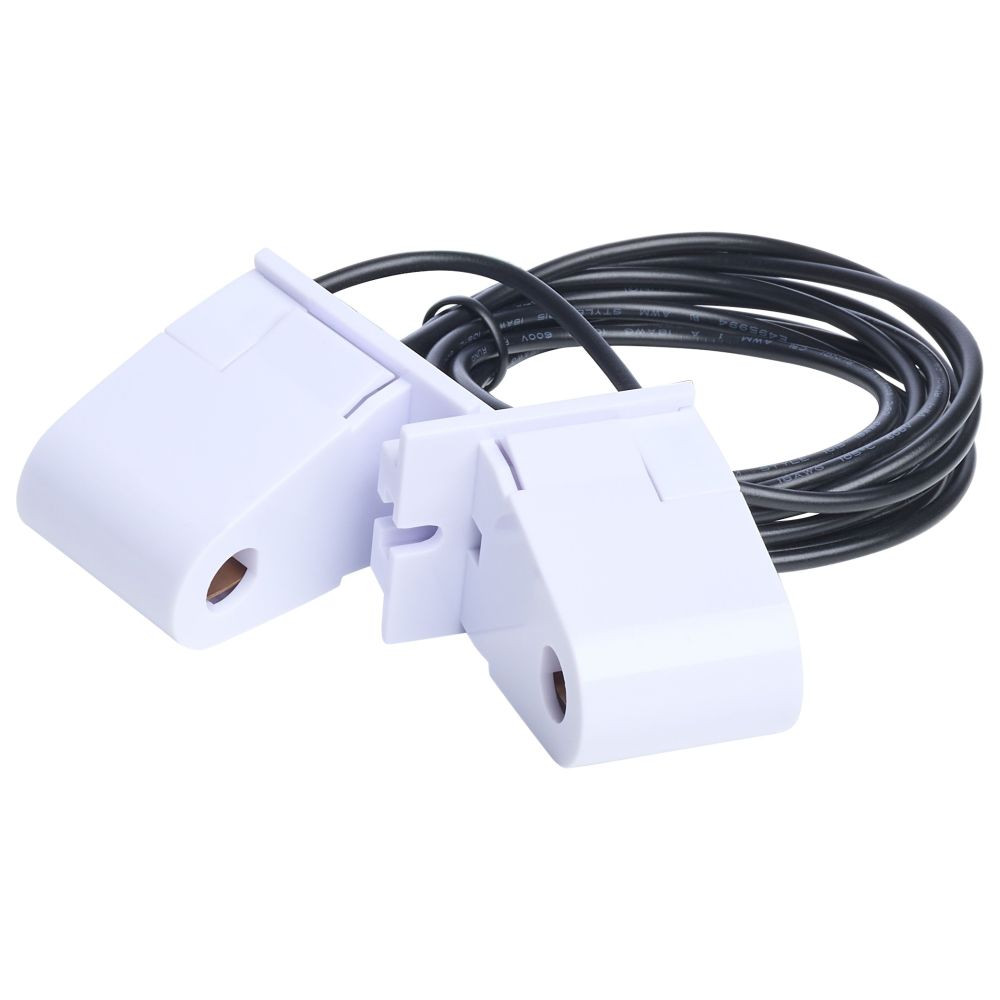

Comes with Fa8 Lamp Holders
Optional R17d Lamp Holders Available
Sturdy Steel Construction
Type B Ballast Bypass Ready
Deep Channel Ideal for Ballasts or EM Driver
You May Also Like ...
Loading related products...
SKU: 65/905
Dimensions
Height
3.62 in
Length
48.46 in
Width
4.6 in
Lamping Details
Lamp Base Type
T8
Lamping Type
Fluorescent
Number of Bulbs
4
Product Details
Power Source
Hardwire
Material
Steel
Finish Color
White
Voltage
120 V
Warranty
1 Year
Wattage
660 W
Weight
8.6 lb
Number of Shades
0
Certifications and Ratings
ETL Rated
Damp Rated
$75.20
