SATCO NUVO'S S11869R1 Fire Rated Recessed Downlight is engineered for fire-resistant ceiling construction and certified for 2-hour fire protection when installed in most floor-ceiling assemblies, including UL Designs L505, L511, L536, L538, L541, L556, L577, M500, M510, M521, and M543. This 6-inch flat lens low-profile luminaire delivers 1100 lumens at 13 watts, replacing a 75-watt incandescent, and features a slim housing compatible with fire-rated ceiling assemblies up to 2 3/8" thick, with a red-painted back housing for rapid inspection identification. Operating at 120–277 volts with 0–10V dimming, it provides consistent, high-quality illumination with integrated fire-safety performance for residential, multi-family, and commercial installations.

• Fire Rated up to 2-Hours

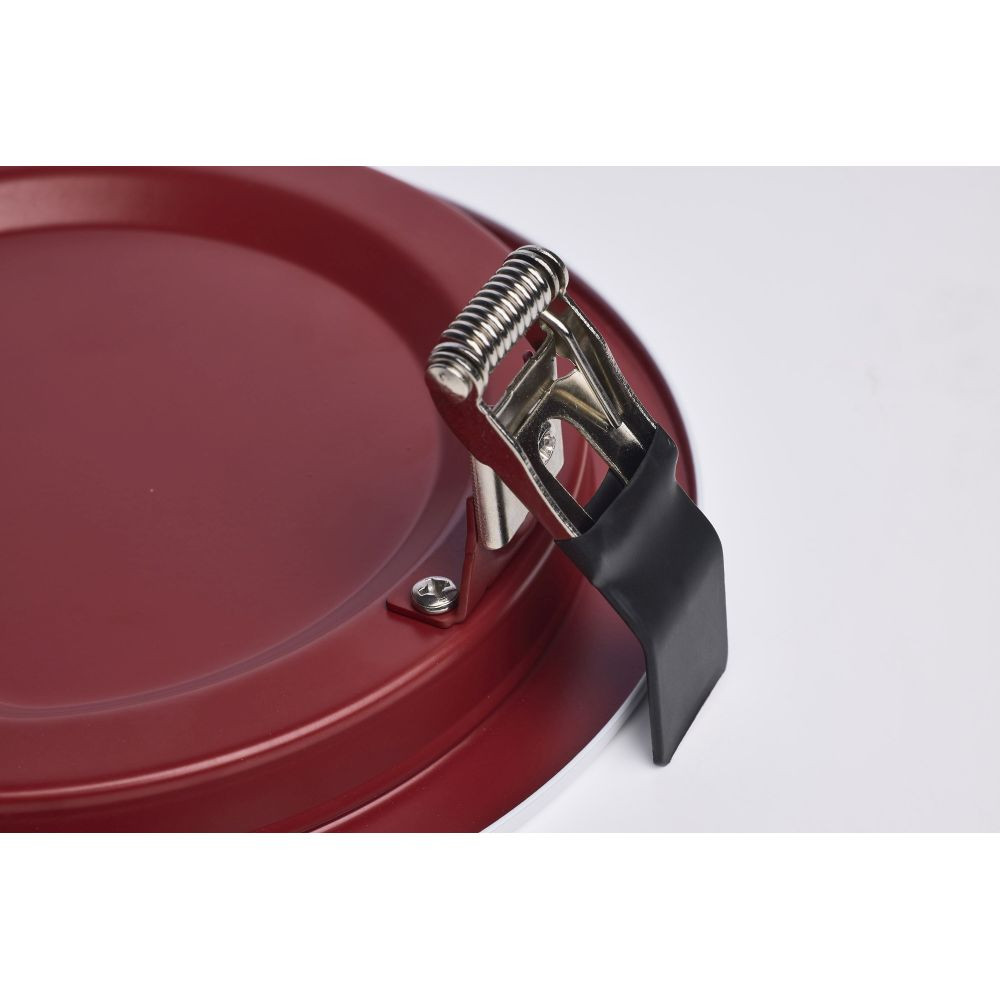

• Red Painted Backplate for Easy Identification

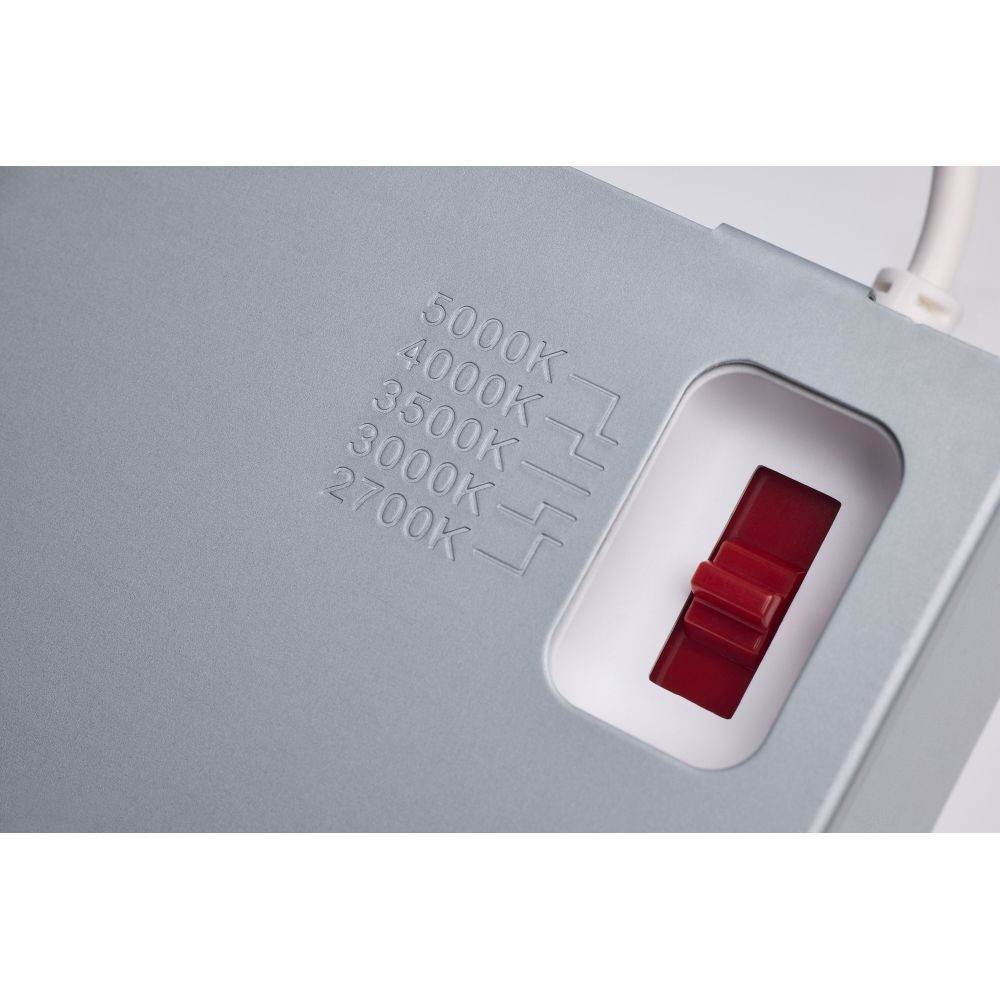

• 5 CCT Selectable
• 90 CRI High Quality Illumination

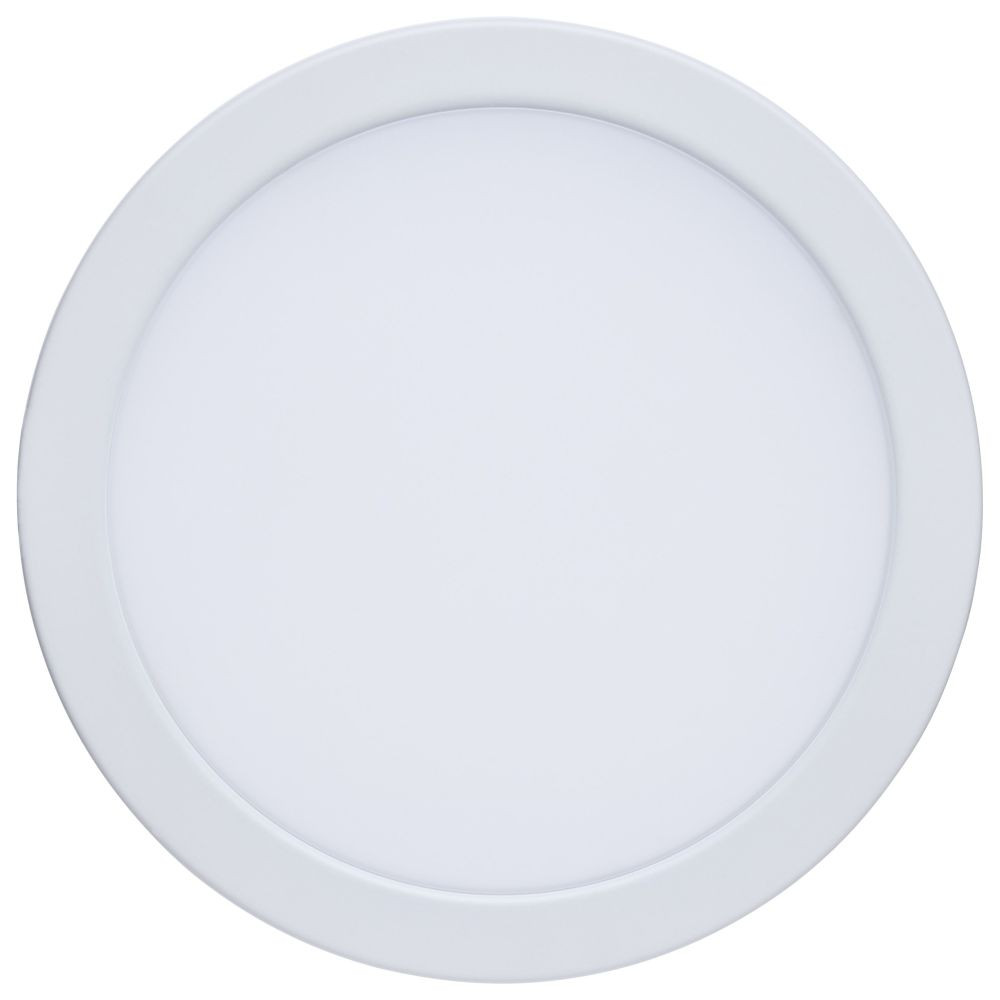

• 6" Flat Lens Model
• 120–277 Volts with 0–10V Dimming
• Wet Location Rated
• IC Rated and AirTight
• 50,000 Hour Functional Life
• 5 Year Warranty
