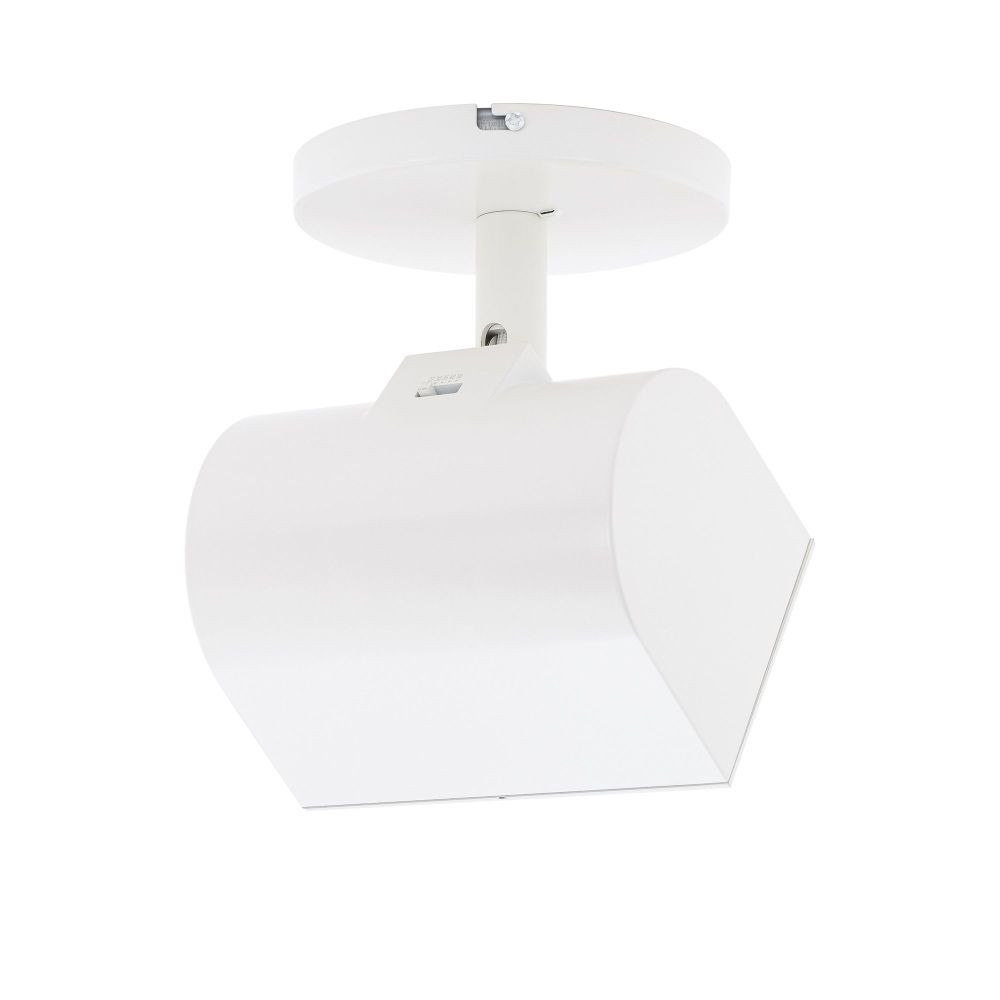

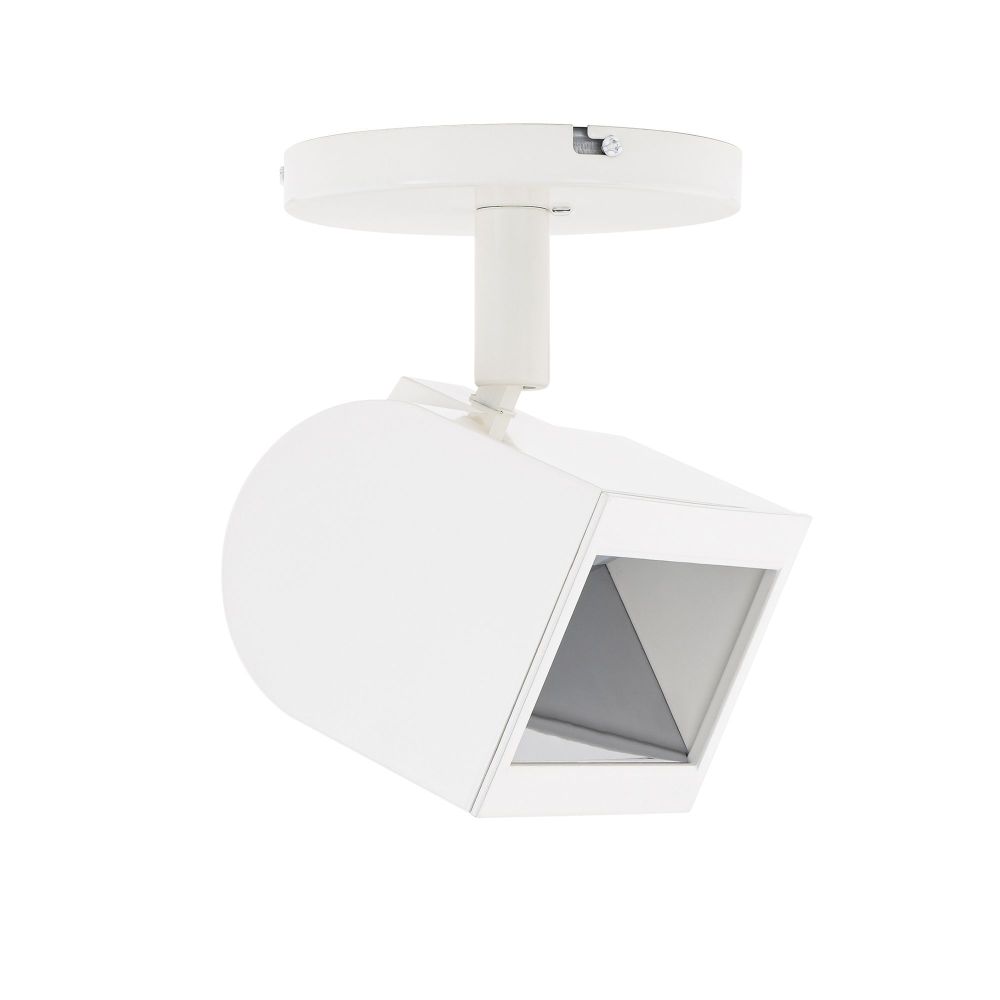

Ideal for residential spaces and lower-mounted commercial installations, the OCULARC 3020W-CS provides an asymmetrical optical distribution suited to wall wash applications. Constructed from die-cast aluminum, the fixtures offer a 350-degree horizontal rotation and 90-degree vertical tilt for precision aiming. Engineered with integral 5CCT selectable LEDs and driver, it produces a high output asymmetric distribution in 90CRI. Available in monopoint or H, J/J2, and L track configurations.

• Die-cast aluminum construction in a simple form and clean design; economical performance luminaire with integral 5-CCT LED and driver, with toolless selection switch.
• 120V thorough 277V universal voltage input. Monopoint canopy may be mounted to ceilings or walls.
• Asymmetrical beam distribution for even wall illumination. Install 3 to 5 feet from wall and 3 to 5 feet on center for optimal effect.
• Smooth and continuous dimming to 10% with TRIAC or Electronic Low Voltage (ELV) dimmer

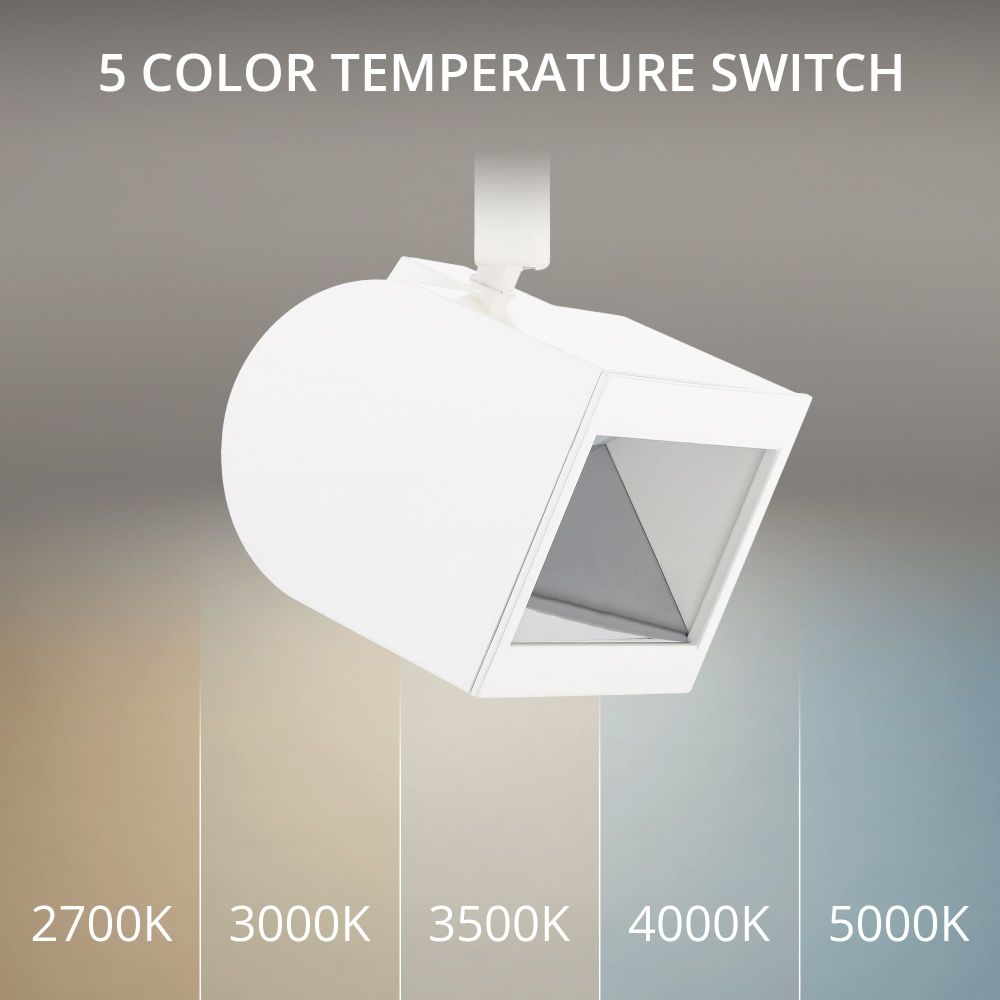

• High Powered 5CCT LED module (No Lamp Required): Color Temp: 2700K/3000K/3500K/4000K/5000K CRI: 90, Rated Hours: 50,000 up to 1150 Lumens, LED Power: 22W
• Standards: ETL & cETL Listed for Damp Locations
