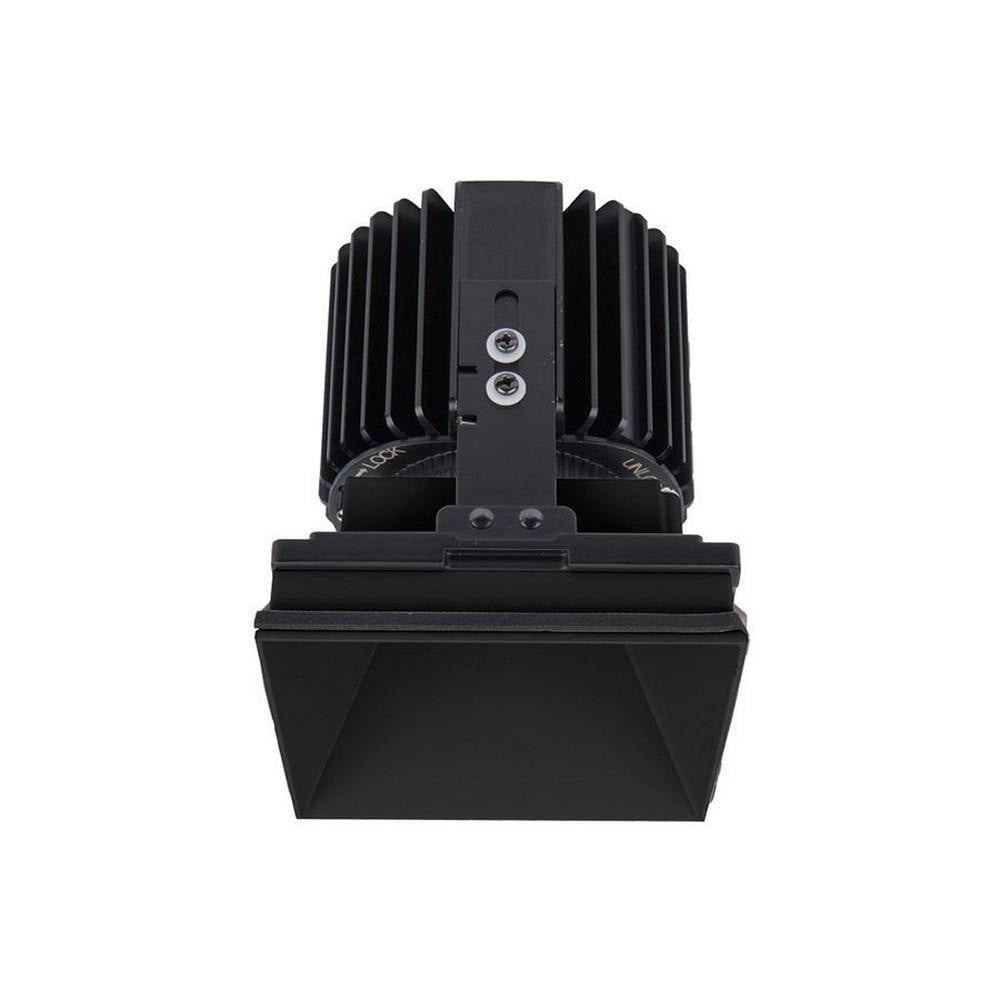

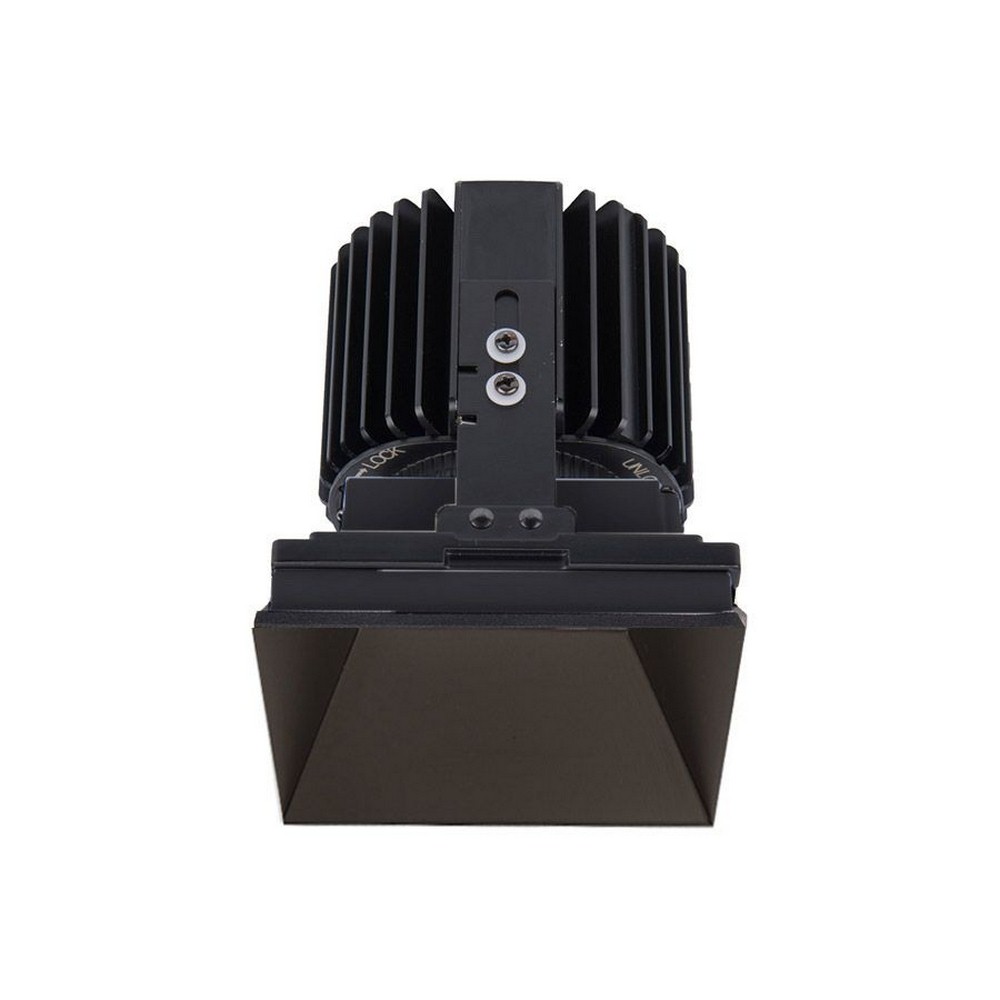

Volta is the quintessential high performance LED architectural recessed downlight. Volta housings can be specified with one of three (15W, 25W, 36W) serviceable drivers to plan your project in accordance with energy and lighting requirements up to 3,000 Lumens. Available in New Construction IC Rated Airtight or Remodel Non-IC Airtight with Emergency backup battery and Chicago Plenum Safety options. Volta trims include an LED Light Engine with a replaceable High Powered LED module and are available in a variety of options including Round, Square, Adjustable, Wall Wash, Shallow Regressed, or a sleek flangeless trim which can be spackled directly up to the aperture. Tool-less in-field adjustable glare control and optic system can be used for louvers, lens, and beam control.

Need help deciding which product is right for your space? Check out our WAC Buying Guide For Expert Advice

Quality Construction:

• Volta trim includes LED Light Engine with replaceable High Powered LED module.
• Energy Star certified and CEC Title 24 compliant (Title 24 only in 90CRI version).
• Available in Round, Square, Adjustable, Wall Wash, Shallow Regressed, and a sleek flangeless trim option which can be spackled directly up to the Aperture.
• Smooth and continuous dimming to 1% with an Electronic Low Voltage Dimmer or 0-10V dimmer.
• Available in New Construction IC Rated Airtight or Remodel Non-IC Airtight versions (Invisible Trim only available on New Construction Models).
• Chicago Plenum Safety Rating and Emergency Backup battery options.

Lighting Specifications:

• High powered replaceable LED
• Color Temperature: 2700K
• Lumens: 1312
• CRI: 85
• Rated Life: 70000 Hours
• Beam Spread: Spot 15°
• Trim Size: 5.75"
• Aperture Size: 4.5"
• 5.13" Cutout
• Shade Included: Yes
• Dimmable: Yes

Warranty:

• Standards: ETL & cETL
• Wet Location Listed.
• 5 Years Functional / 2 Years Finish
